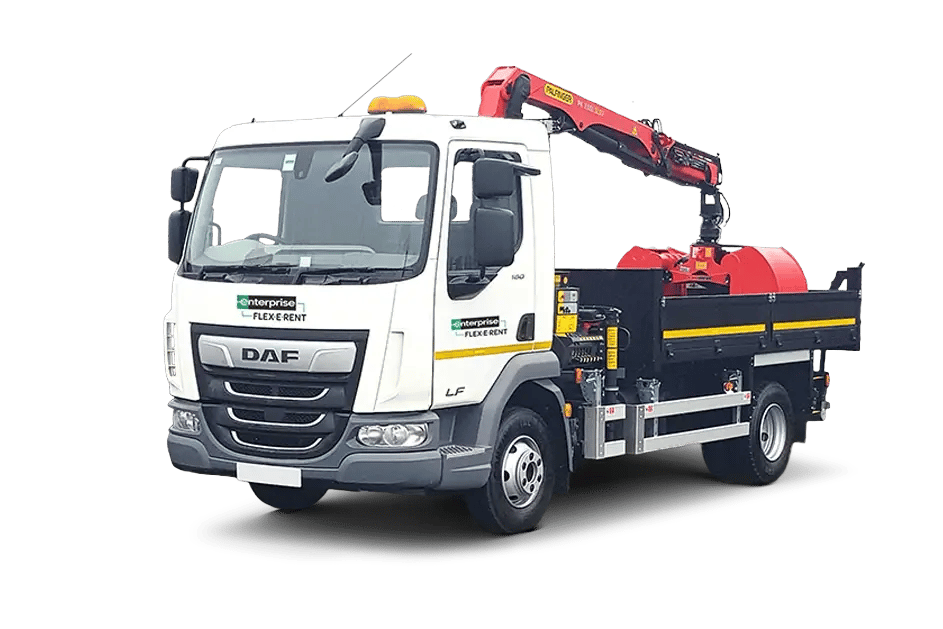

7.5T Tipper Grab Hire

Need a reliable solution for transporting construction waste or materials on-site? A 7.5t tipper grab could be the perfect addition to your fleet.

At Flex-E-Rent, we offer high-quality, fully compliant 7.5t tipper grabs available on flexible hire terms to suit your business needs.

Add to Enquiry

See all Vehicles

Specification

Chassis Type: DAF LF 45 chassis cab
Body Type: Tipper Grab
GVW: 7.5 tonnes
Est Payload: +/- 5%: 1320kg

Dimensions

Body Bed Length: 3670mm
Body Bed Width: 2435mm
Body Bed Height: 380mm
Wheelbase: 3600mm

Download PDF Specification

KEY FEATURES

125 x 65mm steel channel section
80mm x 125mm steel channel section, of integral construction to give low loading height
Two piece insulated pressed steel floor incorporating side raves
Heavy-duty ladder gantry manufactured from 100 mm x 50mm x3mm steel box section
Tailgate fitted with 2 tar chutes
One man operated steel body prop
In cab warning light and buzzer alert when the body is in the raised position. In accordance with C & U directives
Binotto front-end tipping gear, complete with PTO operation
Type approved aluminium side guards fitted to the nearside and offside of the body
16” amber rotating beacon fitted to the cab roof
Lifting moment 60.4 kNm [6.2mtr]
Classification according to EN12999 : 2011
Slewing range 400°
2 section hydraulic extension boom from 5.5m - 7.4m
Telescopic outriggers with hydr. extension to both sides - width 4.9m
BEL illuminated control panels and warning lights on stabilisers
Box level on each side of crane
Slipper pad 300mm x 300mm x 40mm (Force 9 ton) x1
Storage box with key lock (holds single EZ2189 square pad) for 300mm square pad x2
7.5T-10T PK4501 - PK6501HP - front mounting pump/PTO up to 70 litres with handbrake interlock
Conspicuity markings cab and body to regulation ECE104
